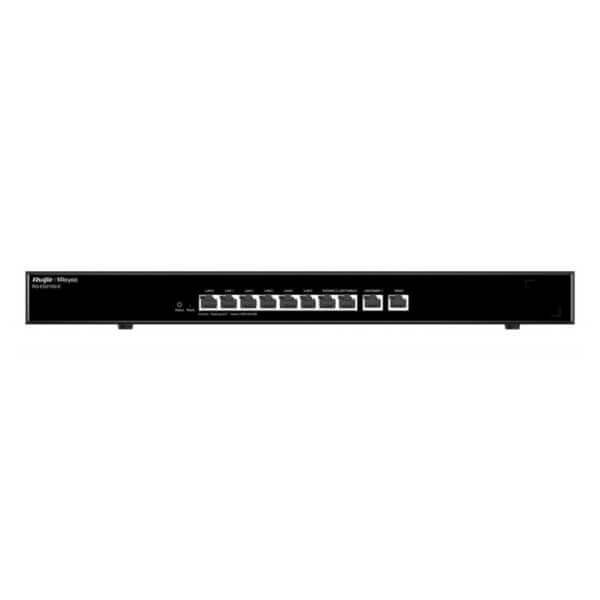

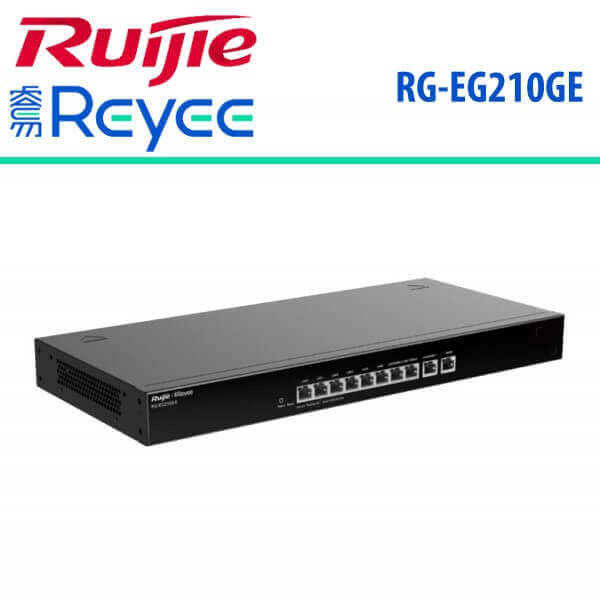

Ruijie RG-EG210GE Router Dubai

The Ruijie RG-EG210GE Router Dubai is a cloud-managed router equipped with a built-in network controller, enabling centralized management of up to 150 Reyee APs and 128 Reyee cloud-managed switches.

Category:

Description

Ruijie Reyee RG-EG210GE Router Dubai

The Ruijie RG-EG210GE Router Dubai is a cloud-managed router equipped with a built-in network controller, enabling centralized management of up to 150 Reyee APs and 128 Reyee cloud-managed switches. The RG-EG210GE series introduces industry-leading auto-discovery and auto-networking capabilities for gateways, switches, and wireless devices. This allows for unified configuration, remote management, and fault diagnosis of the entire network through the Ruijie Cloud app.

Designed for villas, smart homes, restaurants, small offices, and homestay hotels, the Ruijie RG-EG210GE Router Dubai is budget-friendly, compact, and user-friendly. It offers bandwidth ranging from 500Mbps to 1Gbps and supports up to 200 devices. The Ruijie RG-EG210GE Router Dubai by Ruijie Reyee enables per-port VLAN configuration for port isolation and integrates smart flow control for comprehensive network planning. It also facilitates local and remote network diagnosis.

Features

  • Auto-provisioning via Self-Organizing Network : RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless.
  • Lifetime free Ruijie Cloud managed : Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
  • Multiple WAN Ports : Up to 2 WAN ports.
  • Full Gigabit port : Meet the needs of 200M xDSL/fiber access, high-speed wired connectivity.
  • AC mode : Manage Reyee APs, saving cost.
  • Smart flow control : Intelligently adjusted each user bandwidth according to the access bandwidth and the number of users to ensure that each user can enjoy better network experience.
  • IPSec VPN : EG Provide VPN services for headquarters and branches, up to 8 branches.
  • Enterprise Security features : IP/MAC/MAC-Filtering. Independent VLAN for guest, isolated from the internal office network.

Specifications

Model RG-EG105GE
Basic specifications
Fixed ports 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports
(Default : 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port)
RAM 128MB
Flash 16MB
Maximum number of clients Up to 100 concurrent clients
Recommended bandwidth
  • 600M asymmetric bandwidth (flow control disabled)
  • 500M asymmetric bandwidth (flow control enabled)
Local power supply Support 220V AC local power supply
Power consumption <6W
Basic network
Network access
  • PPPoE dial-up
  • DHCP client
  • Static IP
  • Automatic identification of access methods
  • Automatic avoidance of WAN port address conflicts
  • MAC cloning
  • Acquiring account from existing routers
Routing
  • Static routing
  • Policy-based routing
  • Carrier address routing
  • Active/standby mode
  • Load balancing based on source address
  • Flow-based load balancing
  • Port-based weighted load balancing of data streams
Security
  • ACL
  • IP-MAC binding
  • MAC address filtering
  • Dynamic ARP
  • Static ARP binding
  • NAT
  • NAPT
  • Port mapping
Other protocols
  • DHCP Server
  • DHCP Client
  • DHCP Option43/138
  • DNS Client
  • DNS Server
  • DNS Proxy
  • TFTP
  • NTP
  • DDNS
Gateway
Application recognition
  • Built-in self-developed application signature database to identify applications
  • Support free upgrades
Flow control Support custom flow control policies, IP-based automatic bandwidth assignment
Traffic audit Real-time affic audit, IP traffic visualization
Behavior management Time-based and IP policy-based access control, website filtering
VPN IPsec VPN (8 tunnels) server and client, L2TP, PPTP
Authentication
  • Marketing authentication : WiFiDog (SMS authentication and one-click authentication)
  • Local authentication : password authentication, QR code authentication, voucher authentication
Wireless management
Management capacity
  • In AC mode, the maximum management capacity is 300
  • In gateway mode, the maximum management capacity is 32
AP management
  • Support multi-SSID configuration
  • SSID hiding
  • Channel setting
  • Power setting
  • AP wired port setting
  • AP online upgrade
  • STA quantity setting
  • STA blacklist and whitelist
Roaming
  • Support local forwarding roaming
  • Layer 2 roaming
  • Layer 3 roaming between APs
  • Viewing of STA roaming track
Switch management
Management capacity Maximum manageable cloud managed switches : 128
Port management
  • Loop protection
  • Port mirroring
  • Port isolation
  • Port configuration
  • PoE configuration
  • Port limit
  • Storm control
  • Static MAC
  • MAC search
Status display
  • Port statistics
  • Monitoring information
  • Cable detection
  • VLAN configuration
  • MAC list
Upgrade management
  • Per-device upgrade
  • Batch upgrade
Value added features
Featured solutions
  • Single-cable IPTV solution
  • Port service VLAN and network segment isolation solution
  • Smart fault diagnosis solution
  • Intranet penetration solution
  • Auto-networking solution
Management Eweb and Ruijie Cloud
Physical
Dimensions 206.5×108.5×28 (mm)
Weight 0.84kg
Temperature
  • Operating temperature : 0ºC ~ 40ºC
  • Storage temperature : -10ºC ~ 70ºC
Humidity
  • Operating humidity : 10% ~ 90% (non-condensing)
  • Storage humidity : 5% ~ 95% (non-condensing)
