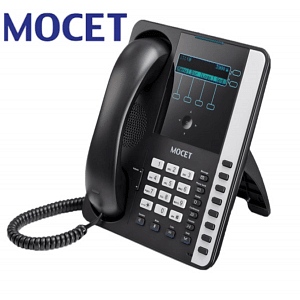

MOCET IP3032 SIP IP PHONE

Rating

MOCET IP3032 SIP IP PHONE

The MOCET IP3032 series are easy-to-use high quality deskphones with many advanced features including support of IPv6, IP security (IPsec), OpenVPN, secure real-time transfer protocol (SRTP), and instant messaging capabilities.

Category:

Description

MOCET IP 3032

Utilizing a next generation capacitive touch sensitivity and smart phone-like panel design, the IP3032 looks elegant and innovative. Moreover, its sky-blue color LCD with backlight support makes itself differential from other vendors’ IP phones. And it can be positioned in three tilt angles and has a wall mount option support.

The IP3032 series can be configured through sky-blue LCD built-in menus or from the phone’s web user interface. Besides, the IP3032 series can be automatically provisioned from a local or Internet based server using the built-in MOCET auto-provisioning and management protocols. It supports up to four simultaneous lines with up to 8 concurrent calls in operation. The IP3032 series supports many advanced call features including 3-way on-phone conferencing, can transfer and receive calls using industry-standard SIP protocols, and can provide built-in music-on-hold (MoH) over IP network. The IP3032 series are interoperable with a wide range of SIP services and servers including those based on Broadsoft, Asterisk, 3CX, Kerio, Metaswitch, Freeswitch and more. Therefore, the IP3032 series can be deployed and used anywhere there is a suitable local area network (LAN) with Internet access and a local or remotely hosted SIP server.

For the Internet connections, the IP3032 series offer 3 different models, including Wifi 11n, dual fast Ethernet and single Ethernet ports. And regarding power sources, it has different support of Ethernet PoE or/and external power adaptor, depending the model.

Specification

  • Elegant innovative design with the latest technologies
  • Complete VoIP and networking protocol support
  • Blue-green 128 x 32 pixels LCD display with backlight
  • HD audio chamber design in handset and speakerphone
  • 4 SIP lines with 8 call appearances
  • 8 programmable keys with LEDs
  • 3 tilt angles of stand
  • Extensive IP networking support including VLAN, VPN, and IPv6
  • Asterisk, Freeswitch, Metaswitch and Broadsoft interoperability
  • Built-in two ports 10/100M Ethernet and a headset port (IP3032-E only)
  • Wireless 802.11 b/g/n network connection support (IP3032-W only)

The MOCET IP3032 series are easy-to-use high quality deskphones with many advanced features including support of IPv6, IP security (IPsec), OpenVPN, secure real-time transfer protocol (SRTP), and instant messaging capabilities.Utilizing a next generation capacitive touch sensitivity and smart phone-like panel design, the IP3032 looks elegant and innovative. Moreover, its sky-blue color LCD with backlight support makes itself differential from other vendors’ IP phones. And it can be positioned in three tilt angles and has a wall mount option support.

The IP3032 series can be configured through sky-blue LCD built-in menus or from the phone’s web user interface. Besides, the IP3032 series can be automatically provisioned from a local or Internet based server using the built-in MOCET auto-provisioning and management protocols. It supports up to four simultaneous lines with up to 8 concurrent calls in operation. The IP3032 series supports many advanced call features including 3-way on-phone conferencing, can transfer and receive calls using industry-standard SIP protocols, and can provide built-in music-on-hold (MoH) over IP network. The IP3032 series are interoperable with a wide range of SIP services and servers including those based on Broadsoft, Asterisk, 3CX, Kerio, Metaswitch, Freeswitch and more. Therefore, the IP3032 series can be deployed and used anywhere there is a suitable local area network (LAN) with Internet access and a local or remotely hosted SIP server.

Display

  • Graphic LCD display (128×32 pixels) with blue-green backlit
  • Brightness and contrast adjustable
  • Line status indication icon
  • Date and time
  • English language support

LED

  • 1 message waiting indication LED
  • 1 handset LED to indicate urgent call and link failure
  • 2 line status LEDs
  • 8 programmable keys with LEDs
  • Functional key LEDs for speaker, mute, hold and line group or headset

Keypad

  • 12 numeric keys
  • 4 sensitive soft keys
  • 5 sensitive navigation keys
  • 2 sensitive line keys
  • 8 programmable keys
  • 11 functional keys for speaker, mute, line group or headset, hold, transfer, conference, message, phonebook, redial and volume up / down

Configuration and Management

  • Embedded Web (HTTP Server) for management
  • Auto-provisioning, security, encryption support
  • Remote and local configuration and upgrade through FTP, TFTP and HTTP server
  • Engineering trace log
  • Asterisk, Freeswitch, Metaswitch and Broadsoft interoperability

Audio

  • Codecs: G.711 (A-law and u-law), G.722, G.723.1, G.726-32, G.729A/B, iLBC
  • Individual volume settings with visual indication for handset, hand-free and ringer
  • Voice activity detection (VAD)
  • Comfort noise generation (CNG)
  • Acoustic gain and echo cancellation (AGC, AEC)
  • Adaptive jitter buffers and packet loss concealment (PLC)
  • DTMF tone generation (RFC2833, in-band and SIP-INFO)
  • Near full-duplex speakerphone

Network

  • IETF SIP V2 (RFC3261)
  • STUN NAT, DHCP, TFTP, Telnet, DNS, SNTP, HTTP, SNMPv2
  • IPv4 and IPv6 protocol
  • Security: IEEE 802.1x, HTTPs, TLS, SSL, SRTP, SIPS, VPN IPsec
  • Instant messaging: SIMPLE, XMPP

Call Features

  • 4 lines appearances
  • 3-way conference
  • Caller ID, call timer, CLIP/CLIR
  • Call hold, call transfer(blind and attended), call forward, call waiting with indicator tones
  • Music on hold
  • Speed dial, redial
  • Distinctive incoming call treatment
  • Do not disturb (DND)
  • Busy lamp field (BLF)
  • I/O Ports
  • One 10/100M Ethernet RJ-45 port for LAN
  • One 10/100M Ethernet RJ-45 port for PC (IP3032-E only)
  • Built-in auto sensing IEEE802.3af PoE, Class1 (IP3032, IP3032-E only)
  • One RJ-9 port for handset
  • One RJ-9 port for headset (IP3032-E only)
  • One DC jack port for power adapter
  • One USB2.0 type A port for wireless 802.11 b/g/n adapter (IP3032-W only)

Conformance

  • FCC Class B and CE Class B
  • Safety: U/L and LVD
  • Environment: RoHS and WEEE

Optional Accessories

  • IP-WMKX: wall mount kit
  • PA-5V550MA: AC/DC power adapter (5V/550mA)

Physical Specification

  • Weight of product: 900g
  • Dimension: 233 x 200 x 45 mm
  • Operating temperature : 0oC to 40oC (32oF to 104oF);
  • Storage temperature: -20oC to 60oC (-4oF to 140oF)
  • Operating relative humidity (non-condensing): 15% to 85%
