D-Link DPH 860S Android IP Video Phone

The D-Link DPH 860S is the modern innovation of progressive color IP video phone. It is combined with audio, video, applications, the DPH 860S is a powerful, easy-to-use business video phone. It has big LCD and user-friendly interface make DPH model an ideal phone for today’s busy managers and officials, whether they are in office, healthcare, soho,etc.

Category:

Description

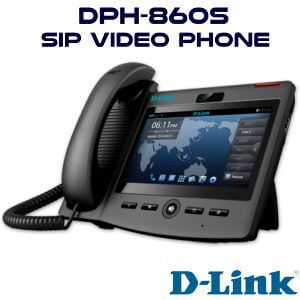

D-Link DPH 860S IP VIDEO PHONE

The D-Link DPH 860S is the advanced innovation by D-link and this is IP Video color phone. It is combined with audio, video applications; the DPH860S is a powerful, user-friendly business video phone. Its bog LCD and user-friendly feature make it an ideal video phone for today’s busy directors and managers, whether they are in office, healthcare or anywhere else. With its excellent user experience and rich business features, it makes an impressive, face-to-face experience over the internet, authorizing you to cooperate with others like never before.

The D-Link DPH 860S include 5M pixels camera and provides business-grade video calling. With the most innovative video codec H.264 and [email protected] video up to 1Mbps. Moreover, users can use DPH 860S as a desktop video phone to join video meetings for its matched video conferencing phone system.

The DPH 860S is prepared with lots of  business features including 6 sip accounts, supporting PoE,  Video  and Audio  conferencing,  BLF, Intercom, call pickup and a host of telephony functions, which increase competence on decision-making when collaborating with others. With wide storage ability for directories and call logs, DPH 860S increases proficiency by showing more calls info through a simple touch. It also comes with a collection of features like rotatable CMOS sensor camera with 5Mega pixels, USB&HDMI,  SD card and also supports all Android apps. Moreover, it is completely interoperable with primary IP PBX system.

D-Link DPH 860S Features:

  • Busy lamp field (BLF), BLF list
  • Message waiting indicator (MWI)
  • Intercom, Music on hold
  • Call park, Call pickup
  • Anonymous call, Anonymous call rejection
  • DND & forward synchronization Network and Security
  • Android 2.1
  • Third party android application, e.g email IM,Internet Radio,web browser
  • Application market, Desktop/google search, Desktop widget
  • Web,telnet and keypad management
  • Management with different account right
  • Support automatic upgrades/configuration deployment
  • Support encrypted configuration files download with AES
  • Support pushing message, Support SNMP(Optional), Support TR-069 (Optional)
  • 5 VoIP accounts, Video/Voice call
  • 20 one-touch soft DSS keys, Speed dial
  • Dial/answer call type selection (video or voice)
  • Call forward, Call waiting, Call transfer, Call hold
  • Call manager, Mute, Redial, Auto answer
  • DND, Caller ID display, Call history, Call statistics, Voice mail
  • Local 3-way audio conference, Direct IP call without SIP proxy
  • Phonebook with contact picture, Group manager, Black list
  • Picture dial, XML/LDAP remote phonebook
  • New message and missed call notification
  • Volume( handsfree/handset/headset/ring) adjustment
  • Wall paper, Video/Photos screen saver
  • Video/photo/wallpaper/ringtone manager
  • Set date time manually or automatically
  • National language selection, Backlight time selection
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Professional Speaker/HD Voice, Ergonomic handset
  • Voice activity detection, Comfort noise generation
  • 6 SIP servers and 3 backup SIO servers, NAT transverse: STUN mode
  • Proxy mode and peer-to-peer SIP link mode, IP assignment: static/DHCP/PPPoE
  • Video capacity: up to D1 (800×480)@30fps, Video call format:CIF,QCIF,QVGA,4CIF
  • Bandwidth selection: 128kbps~1Mbps, Frame rate selection: 10~30fps
  • Adaptive bandwidth adjustment, I-frame adjustable, Picture-in-Picture (PIP)
  • Full screen for remote side, Video control of local side, HDMI output
  • Door phone and IP camera application

Product Downloads

DPH-860S Datasheet
