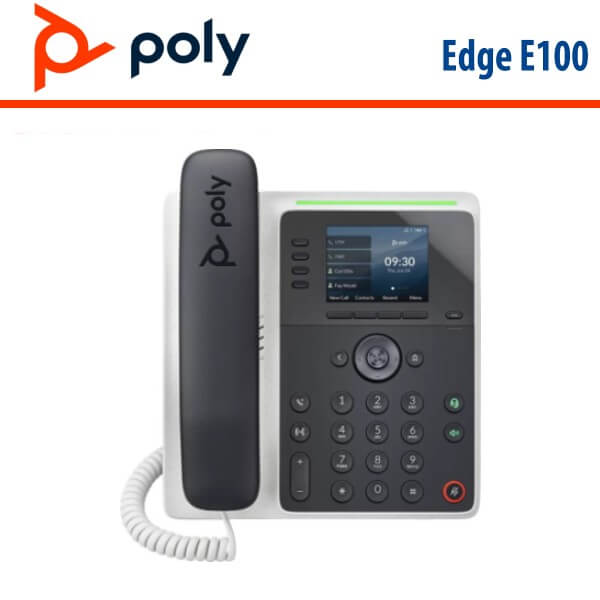

Poly Edge E100 Dubai

Rating

Poly Edge E100 Dubai

The Poly Edge E100 Dubai is a reliable solution that caters to your business requirements, ensuring you stay competitive in your industry.



Category:

Description

Poly Edge E100 Dubai

Experience enhanced connectivity and exceptional audio quality with the Poly Edge E100 Dubai, featuring two-line keys in a sleek package. These phones seamlessly integrate Poly’s renowned noise reduction technology with a cutting-edge design to deliver the ultimate user experience.

Loaded with advanced features like text-to-speech and antimicrobial protection, the Poly Edge E100 Dubai is a reliable solution that caters to your business requirements, ensuring you stay competitive in your industry.

Key Features

  • Improved accessibility with text-to-speech feature, screen color adjustments for color blindness and bigger font settings.
    • Stay informed with style with the light bar status indicator.
    • Your phones stay cleaner for longer with integrated Microban® antimicrobial protection.
    • Let the phone compliment your office layout with a 2-position stand and wall mount hardware included.

Specifications

LINES / FEATURE KEYS

  • 2-line keys supporting up to 8-line key assignments for lines, contacts, and features supported with pagination
  • 4 context-sensitive “soft” keys
  • 4-way navigation key cluster with center “Select” key
  • Home and back feature keys
  • Pagination key for additional lines/contacts
  • Volume + / – control keys
  • Hold and Transfer keys
  • Headset select key
  • Speakerphone select key
  • Mute key (illuminated when muted)

USER INTERFACE FEATURES

  • Color 2.8” IPS LCD display (320×240 pixel resolution)
  • Voicemail support1
  • WebKit-based browser
  • Two position desk stand with wall mount option included
  • Unicode UTF-8 character support
  • One USB Type-C ports (2.0 compliant) for media, storage applications and headset connectivity
  • Lightbar status indicator (RGB with color mixing)
  • NFC Support
  • Multilingual user interface including2 Arabic (UAE), Chinese (Traditional/ Simplified), Czech, Danish, Dutch, English (Canada/ US/UK), French (France/Canadian), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Slovenian, Spanish, and Swedish

AUDIO FEATURES

  • Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
  • Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression
  • Poly Acoustic Fence technology eliminates background noise when using a handset or wired headset
  • Poly NoiseBlockAI technology removes most background noise when using the speakerphone
  • Poly Computer Audio Connector app installed on your PC (Windows only) enables selecting your phone for PC audio in/out to use the phones handset, optional headset and handsfree speakerphone with PC applications
  • Frequency response—150 Hz-14 kHz for handset, optional headset and handsfree speakerphone modes
  • Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1, iLBC, OPUS
  • TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
  • Individual volume settings with visual feedback for each audio path
  • Voice activity detection
  • Comfort noise generation
  • DTMF tone generation (RFC 2833 and in-band)
  • Low delay audio packet transmission
  • Adaptive jitter buffers
  • Packet loss concealment

HEADSET AND HANDSET COMPATIBILITY

  • Dedicated RJ-9 headset port
  • Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
  • Compliant with ADA Section 508 Subpart B 1194.23 (all)
  • Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
  • Compatible with commercially available TTY adapter equipment
  • USB headset support (USB Type-C)

CALL HANDLING FEATURES¹

  • Enhanced Feature Keys make powerful feature shortcuts online key appearances or soft keys
  • Shared call/bridged line appearance
  • Busy Lamp Field (BLF)
  • Flexible line appearance (1 or moreline keys can be assigned for each line extension)
  • Distinctive incoming call treatment/ call waiting
  • Call timer and call waiting
  • Call transfer, hold, divert (forward), park, pickup
  • Called, calling, connected party information
  • Local 3-way audio conferencing
  • 1-touch speed dial, redial
  • Remote missed call notification
  • Do not disturb function
  • Reverse Number Lookup via LDAP
  • Calling Party Identification (RFC8225 classifications—Trusted, Unknown, SPAM)
  • Electronic hook switch capable
  • Local configurable digit map/dial plan

OPEN APPLICATION PLATFORM

  • WebKit-enabled full browser that supports HTML5, CSS, SSL security, and JavaScript
  • Supports Polycom Apps SDK and API for third-party business and personal applications
  • NFC-enabled Edge E series phones allow third-party applications to read serial number and other device information that can be useful in application development such as guest login for phone hoteling1
  • Corporate directory access using LDAP
  • Visual Conference Management

NETWORK AND PROVISIONING

  • SIP Protocol Support
  • SDP
  • IETF SIP (RFC 3261 and companion RFCs)
  • Two-port gigabit Ethernet switch 10/100/1000Base-TX across LAN and PC ports – Conforms to IEEE802.3-2005 (Clause 40) for Physical media attachment – Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
  • Manual or dynamic host configuration protocol (DHCP) network setup
  • Time and date synchronization using SNTP
  • FTP/FTPS/TFTP/HTTP/HTTPS server based central provisioning for mass deployments
  • Provisioning and call server redundancy supported1
  • QoS Support–IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
  • VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
  • Network Address Translation (NAT) — support for static configuration and
  • “Keep-Alive” SIP signaling
  • RTCP and RTP support
  • Event logging
  • Syslog
  • Hardware diagnostics
  • Status and statistics reporting
  • IPv4, IPv6, dual stack (IPv4/IPv6) mode
  • TCP
  • UDP
  • DNS-SRV

SECURITY

  • 1X Authentication and EAPOL Media encryption via SRTP
  • Transport Layer Security (TLS)
  • Encrypted configuration files
  • Digest authentication
  • Password login
  • Support for URL syntax with password for boot server address
  • HTTPS secure provisioning
  • Support for signed software executables

POWER

  • Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 3) 13 W (Max)
  • External Universal AC/DC Adapter (optional) 5VDC @ 3A (2.5W)
  • ENERGY STAR® rated

REGULATORY APPROVALS³

  • FCC Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • EN55032 Class B
  • CISPR32 Class B
  • VCCI Class B
  • EN55024
  • EN61000-3-2; EN61000-3-3
  • UK – UKCA
  • NZ Telepermit
  • UAE TRA
  • Eurasian Customs Union EAC
  • Brazil ANATEL
  • Australia RCM
  • South Africa ICASA
  • Saudi Arabia CITC
  • Indonesia SDPPI
  • Korea KC
  • Mexico NOM ANCE
  • RoHS Compliant
  • CE Mark
  • TAA
  • SAFETY
  • UL62368-1
  • CAN/CSA C22.2 No 62368-1-14
  • EN 60950-1/62368-1
  • IEC 60950-1/62368-1
  • AS/NZS 60950.1/62368.1

OPERATING CONDITIONS

  • Temperature: 0 to 40°C (+32 to 104° F)
  • Relative humidity: 5% to 95%, noncondensing

STORAGE TEMPERATURE

  • -40 to +70° C (-40 to +160° F)

POLY EDGE E100 UNIT BOX DIMENSIONS

(L X W X D) / WEIGHT

  • Box dimension: 22.3 x 25.5 x 8.3 (cm) ; 8.8 x 10 x 3.5 (inches)
  • Box weight: 0.88kg/ 1.95lbs (with product, accessories, and documents)



datasheet downloads - Poly Edge E100 Dubai
