Cisco Aironet1542I Dubai

Rating

Cisco Aironet1542I Dubai

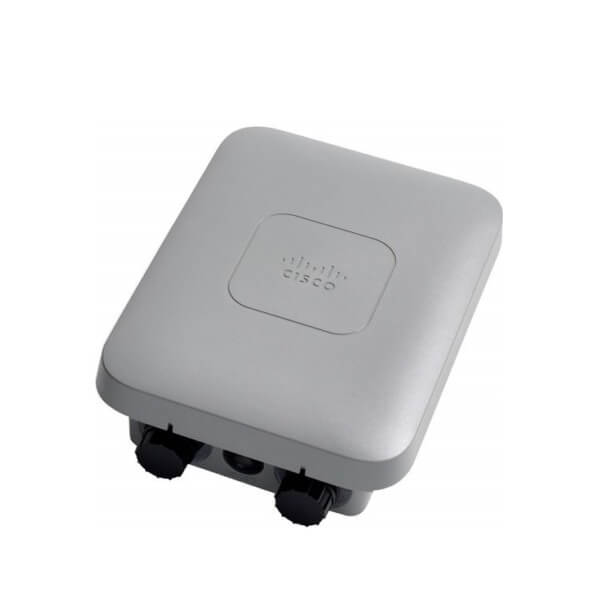

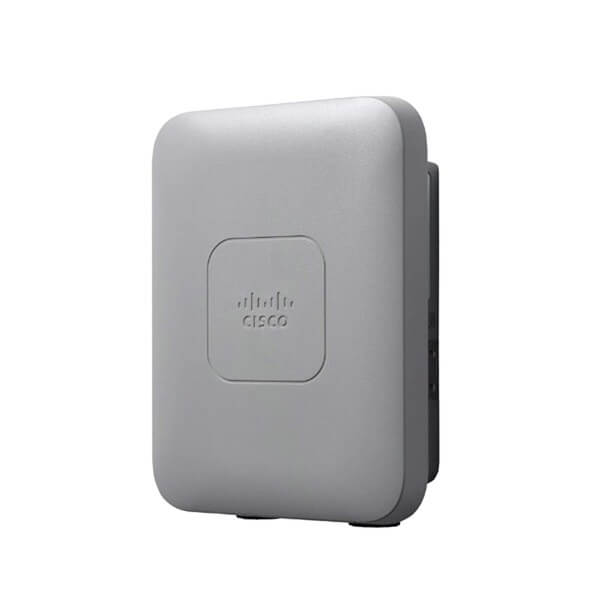

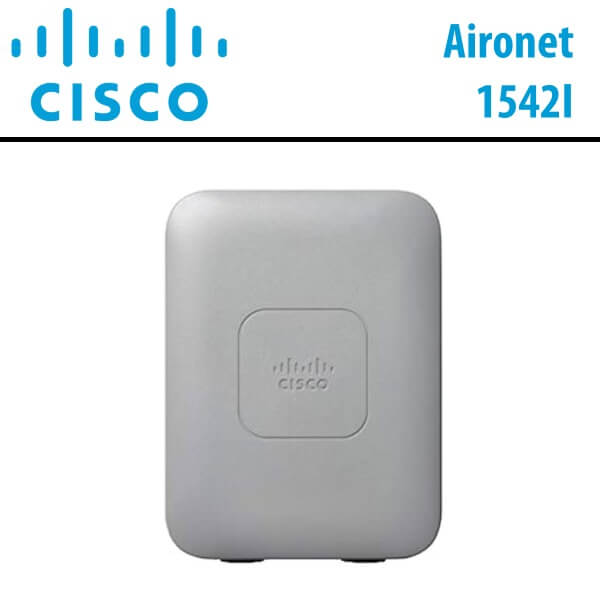

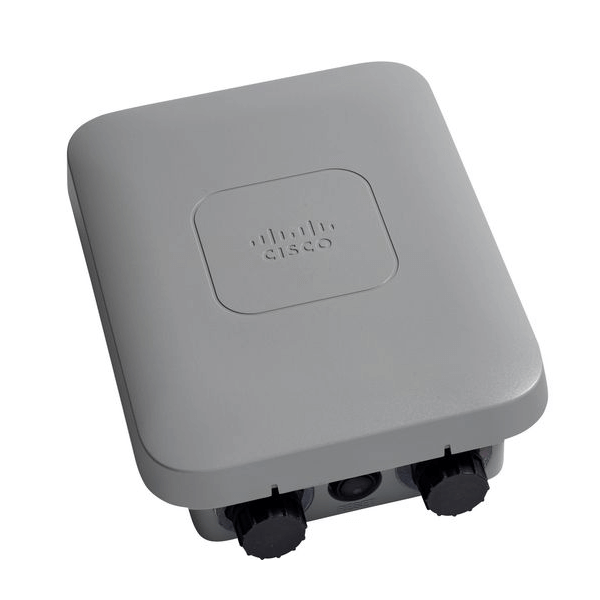

The Cisco Aironet1542I Dubai Outdoor Access Point is well-suited for applications demanding resilient outdoor Wi-Fi coverage, featuring support for the latest 802.11ac Wave 2 radio standard. Encased in a compact and visually appealing design.

Category:

Description

Cisco Aironet1542I Dubai

The Cisco Aironet1542I Dubai Outdoor Access Point is well-suited for applications demanding resilient outdoor Wi-Fi coverage, featuring support for the latest 802.11ac Wave 2 radio standard. Encased in a compact and visually appealing design, this access point is easy to deploy, providing service providers and enterprise networks with flexible deployment options for achieving the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. Within the 1540 Series, network operators gain the flexibility to align their desired wireless coverage with the imperative for easy deployment.

Whether utilized as a conventional access point or a wireless mesh access point, the Cisco Aironet1542I Dubai Outdoor Access Point delivers the necessary throughput capacity to meet the demands of today’s bandwidth-hungry devices.

Key Features:

Compact size- Enables deployment of the access point where it’s needed. The Cisco Aironet1542I Dubai easily mounts to walls or light poles without disturbing the aesthetics of the area.

802.11ac Wave 2 radio-  Cisco Aironet1542I Dubai  provides up to 867-Mbps data rates with 2 x 2 multiuser multiple-input, multiple-output (MU-MIMO) with up to two spatial streams.

Multiuser MIMO (MU-MIMO)- Cisco Aironet1542I Dubai supports multi-user MIMO which allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience. Prior to the 802.11ac Wave 2 standard, access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

Flexible deployment modes-Allows for deployment in a variety of ways, including as traditional access points and in mesh networks. Cisco Aironet1542I Dubai can also be deployed with the Cisco Mobility Express Solution. This deployment is ideal for small to medium-sized networks that that require 50 or fewer access points without a physical controller. All deployment modes are easy to set up and configure.

Technical Details

General
Device Type Wireless access point
Ruggedized Design Outdoor
Width 5.9 in
Depth 7.9 in
Height 2.4 in
Weight 2.76 lbs
Localization United States
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T (PoE+) – RJ-45
  • 1 x console – RJ-45
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 13 Watt
Antenna
Antenna Internal
Antenna Qty 2
Directivity Omni-directional
Gain Level 5 dBi
Networking
Form Factor External
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Network / Transport Protocol L2TP, IPSec
Frequency Band 2.4 GHz, 5 GHz
Capacity Spatial streams: 2
Features MAC address filtering, VPN passthrough, reset button, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), 2×2 MU-MIMO technology
Encryption Algorithm LEAP, AES, TLS, PEAP, TTLS, WPA2
Authentication Method X.509 certificates, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – 1 year – response time: 10 days
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 149 °F
Miscellaneous
Compliant Standards

EN 60950, ICES-003, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, IP67, X.509, MIL-STD-810, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, IEC 60529, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, EN 301 893, EN 301 489-17
