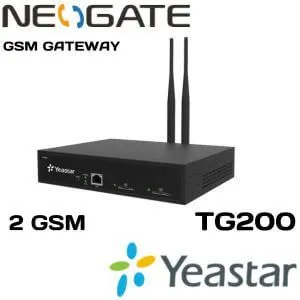

Yeastar NeoGate TG200 GSM Gateway


Yeastar NeoGate TG200 GSM VoIP Gateway

Yeastar NeoGate TG200 is a VoIP GSM gateway with 2 channels attached with GSM network for softswitch and IP PBX. TG200 supports 2-way communication; VoIP to GSM and GSM to VoIP. Hence the calls costs could be considerably cheap by VoIP or GSM network.


Yeastar NeoGate TG200 GSM Gateway

The Yeastar Neogate TG200 is a GSM VoIP gateway for linking GSM networks to VoIP networks and 2-way communication. The Neogate TG200 is best for connecting IP Phones, soft switches, and IP-PBX’s to GSM network, and is the great alternative solution for cable outages. The TG200 GSM Gateway from Yeastar can be a cheap in addition for a backup option when landlines go out and are great for phone calls between mobiles or to PTSN. It’s easy to install with a web-based GUI and simple to integrate in other words it is user-friendly.

Yeastar Neogate Series contains features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web line, callback function, Least Cost Routing, best voice quality, easy web-based configuration and it’s easy to integrate and to install.

Yeastar Neogate TG200 Features:

  • Number of GSM channels
  • Transport: UDP
  • DTMF: RFC2833, SIP INFO, In-band
  • Codec: G.711 A/u-law, G.726, G.729 A, GSM, Speex.
  • LAN: 1 (10/100MBps)
  • Network: DHCP Server, VLAN, Firewall.
  • Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)
  • Size: 175x125x31mm
  • SIP Server and SIP Trunk supported
  • SIP Peer Mode supported
  • VoIP Trunk Group
  • Incoming /Outgoing Routing rules
  • Call Progress Tone Generation
  • Web based configuration

How we help you choose Yeastar Products?

We offers all the models of Yeastar telephony products to complement with your business communication needs and budget. If you’re looking for Yeastar Neogate Voip Gateway, Yeastar PBX System,Yeastar Mypbx Modules, we’ve got it covered.Yeastar IP PBX System make your small business look big. Contact Us today to get best Yeastar MyPBX Prices present in UAE.

We know that different businesses have diverse needs telephony products.We have good experience in dozens of Telephone systems and we can suggest the best for a variety of business types. We carry everything small business want in a telephone system. If you want a normal PABX SYSTEM or a full featured IP PBX SYSTEM , We have several solution for your Business Communication needs.. We support you with supplying business telephone system and trained IT staff to support and maintain.

Product Downloads

NeoGate TG200 Datasheet
