Description

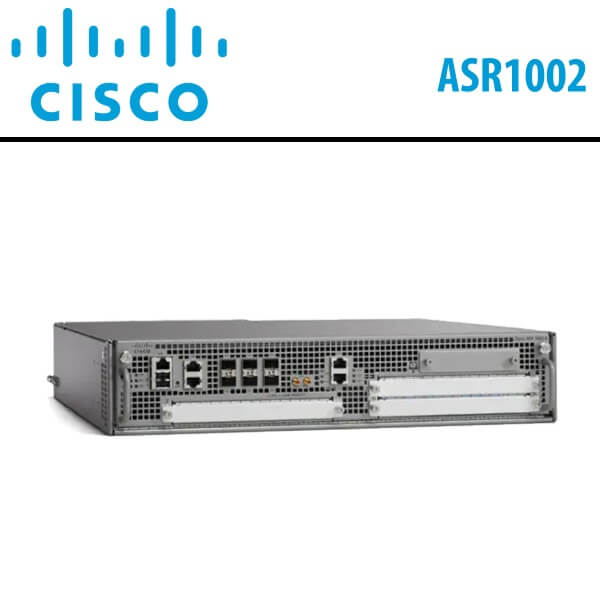

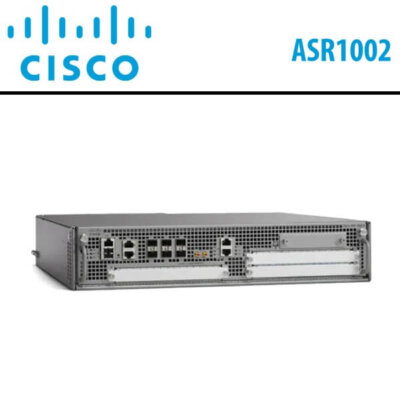

Cisco ASR1002 Dubai
The Cisco ASR1002 Dubai integrates the route processor for control plane functionality, the services processor for data plane traffic, and a carrier card designed to accommodate I/O modules and shared port adapters, all within a unified chassis. The Cisco ASR1002 Dubai is equipped with 4 built-in SFP ports and features 3 box slots for I/O connectivity.The integrated route processor comes with a default configuration of 4GB DRAM, with the option for upgrades to 8GB or 16GB.
Features
Redundant hardware components and power supplies-
- Provides system and business continuity.
- Redundant Route Processors and Embedded Services Processors in ASR 1006 and ASR 1013.
- Redundant instances of Cisco IOS XE Software in ASR 1001, ASR 1001-X,Cisco ASR1002 Dubai, ASR 1002-X, and ASR1004.
Stateful inter-chassis redundancy-
- Redundant hardware combined with modular software contains faults preventing systemwide failure.
- Enables redundancy across routers by using a pair of routers to act as backup for each other. Provides 99.999% (“five-nines”) availability for consistent, high-performance user application experiences.
Cisco QuantumFlow Processor-based platform-
Enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration-
Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Technical Details
| Product Code | Cisco ASR 1002 |
| Rack Height | 2RU |
| System Bandwidth | 2.5G (default) / 5G, 10G, 20G (upgrade) |
| Router Processor (RP) | Quad-core 2.13Ghz processor |
| Build-in Gigabit Ethernet port | 4 x SFP ports |
| Redundancy | Software (license purchase separately) |
| Cisco ASR 1000 Series ESP | 1 ESP slot |
| SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable |
| Rack-mounting | 19-inch |
| DRAM Memory | 4GB-shared across RP and SIP |
| Flash Memory | 8 GB |
| Shared port adapters | 3 SPA slots |
| External USB flash memory | 1-GB USB flash-memory support |
