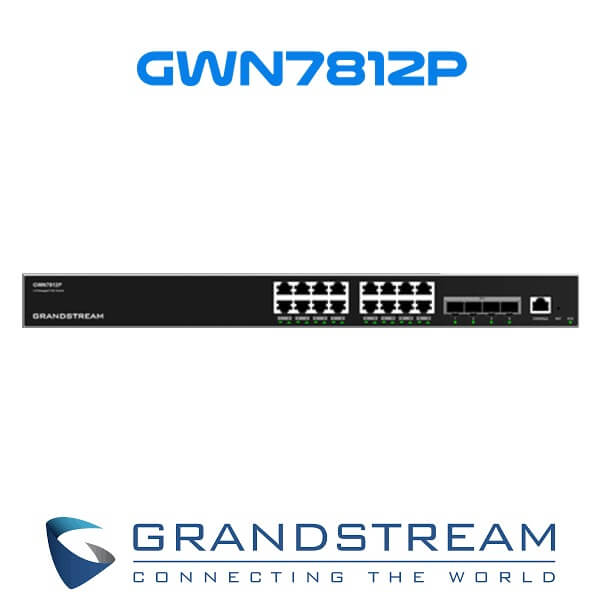

Grandstream GWN7812P Enterprise Layer 3 Managed PoE+ Network Switch

The Grandstream GWN7812P represents the optimal balance between port density, advanced routing capabilities, and comprehensive PoE+ functionality for medium-sized enterprise deployments in Dubai. This 16-port Layer 3 managed switch combines sophisticated routing protocols with a substantial 240W PoE+ power budget, enabling organizations to support larger numbers of PoE-enabled devices while maintaining the advanced networking capabilities necessary for complex business applications and modern IT infrastructure requirements.

Dubai’s expanding business landscape includes numerous organizations that have outgrown basic switching solutions but require more sophisticated networking capabilities than traditional Layer 2 switches can provide. The GWN7812P addresses this market segment by delivering enterprise-grade Layer 3 functionality alongside comprehensive PoE+ support, making it an ideal choice for growing businesses, branch offices, educational institutions, and specialized applications that require both advanced routing and centralized power management.

The strategic importance of mid-density Layer 3 PoE+ switching becomes particularly apparent in Dubai’s diverse commercial environments, where organizations need to support multiple device types while implementing sophisticated network architectures. The Grandstream GWN7812P’s ability to provide routing intelligence, network segmentation, and power delivery through a single device significantly reduces infrastructure complexity while enabling more flexible and cost-effective network designs that can adapt to evolving business requirements.

Optimized Port Density for Growing Businesses

The Grandstream GWN7812P’s 16-port configuration provides the optimal balance between connectivity density and management complexity for organizations that have expanded beyond small office requirements but don’t yet need the high-density capabilities of larger switches. This port count proves particularly well-suited for medium-sized offices, department-level deployments, or specialized applications that require dedicated network infrastructure with advanced routing capabilities.

The switch’s four 10 Gigabit SFP+ uplink ports provide high-speed connectivity options that enable efficient aggregation of traffic from multiple network segments or high-bandwidth connections to servers, storage systems, or service provider networks. This uplink capacity ensures that the switch can support demanding applications and high-traffic scenarios without creating bottlenecks that could impact overall network performance.

Advanced port management capabilities enable administrators to configure individual ports for specific roles, applications, or security requirements. The GWN7812P’s support for port-based VLANs, security policies, and QoS configurations provides granular control over network behavior while maintaining the simplicity necessary for efficient management. This flexibility proves valuable for organizations that need to support diverse device types or implement different network policies for various user groups or applications.

The switch’s support for link aggregation enables multiple physical connections to be combined into high-bandwidth logical links, providing both increased throughput and redundancy for critical network connections. This capability proves particularly valuable for organizations that require high-bandwidth connections to centralized resources or need to ensure continuous connectivity for business-critical applications.

Comprehensive PoE+ Power Management for Abu Dhabi Deployments

The Grandstream GWN7812P’s 240W PoE+ power budget provides substantial power delivery capabilities that can support a wide range of PoE-enabled devices while maintaining optimal power efficiency. With the ability to deliver up to 30W per port, the switch can simultaneously power high-performance wireless access points, PTZ security cameras, advanced IP phones, and other power-hungry devices that are increasingly common in modern business environments.

Intelligent power allocation algorithms continuously monitor power consumption across all connected devices, automatically adjusting power delivery to ensure optimal efficiency while preventing overload conditions. This dynamic approach to power management enables organizations to maximize device density while maintaining system stability and reliability. The switch’s ability to prioritize power allocation based on device type or business criticality ensures that essential systems maintain power even during high-demand situations.

Advanced power monitoring and reporting capabilities provide detailed insights into energy consumption patterns, device efficiency, and operational costs across all connected PoE devices. Organizations can generate comprehensive reports that enable data-driven decisions about infrastructure optimization, capacity planning, and energy management strategies. This level of visibility proves particularly valuable for organizations implementing sustainability initiatives or seeking to optimize operational expenses.

The GWN7812P’s support for power scheduling and automated power management policies enables organizations to implement sophisticated energy conservation strategies that reduce power consumption during non-business hours or low-activity periods. This capability aligns with Abu Dhabi’s sustainability goals while providing tangible cost savings for organizations seeking to optimize their operational expenses through intelligent infrastructure management.

Advanced Layer 3 Routing for Complex Network Architectures

The GWN7812P incorporates comprehensive Layer 3 routing functionality that enables organizations to implement sophisticated network architectures without requiring dedicated routing hardware. The switch supports static routing, dynamic routing protocols, and inter-VLAN routing capabilities that provide the foundation for complex network designs that can support multiple departments, applications, or security zones within a single infrastructure.

The switch’s support for both IPv4 and IPv6 routing protocols ensures compatibility with current and future network requirements while providing the flexibility necessary for organizations planning long-term infrastructure strategies. As businesses in Dubai increasingly adopt IPv6 for improved address space and enhanced security features, the GWN7812P’s dual-stack capabilities provide a smooth migration path that protects existing investments while enabling adoption of new technologies.

Advanced routing table management capabilities enable the switch to handle complex routing scenarios while maintaining optimal performance across all network segments. The GWN7812P can maintain multiple routing tables, implement route filtering, and support route redistribution between different routing protocols. This flexibility enables network administrators to implement sophisticated routing policies that optimize traffic flow and ensure appropriate connectivity between different network segments.

The switch’s support for Virtual Router Redundancy Protocol (VRRP) provides high availability capabilities that ensure network connectivity remains available even if individual routing devices experience failures. This redundancy proves critical for organizations that cannot tolerate network downtime, particularly in Dubai’s competitive business environment where continuous connectivity directly impacts operational efficiency and customer satisfaction.

Enhanced Security Framework for Medium-Scale Deployments

Security considerations become increasingly important as organizations grow and implement more complex network architectures that support diverse device types and user groups. The Grandstream GWN7812P incorporates comprehensive security features specifically designed to address the challenges associated with medium-scale deployments that require both Layer 3 routing and PoE power delivery capabilities.

The switch’s support for Access Control Lists (ACLs) at both Layer 2 and Layer 3 enables administrators to implement granular traffic filtering policies that control communication between different network segments, device types, or user groups. This capability proves particularly important for organizations that must comply with regulatory requirements or implement strict data segregation policies while supporting PoE devices that may have different security requirements.

Advanced threat detection and mitigation capabilities help protect against both traditional network attacks and PoE-specific security threats. The GWN7812P’s monitoring systems can detect unusual patterns in both routing table updates and power consumption that might indicate security compromises or equipment malfunctions. The correlation of routing data with power usage patterns provides security teams with additional insights that enhance overall threat detection capabilities.

The integration of power management with network access control creates opportunities for sophisticated security policies that combine authentication, authorization, and power delivery. Organizations can implement policies that provide power only to authenticated devices that have also been authorized for specific network segments or routing domains, creating a more comprehensive security framework that addresses both logical and physical security concerns.

Integration with Unified Communications and Collaboration Systems

The Grandstream GWN7812P’s combination of Layer 3 routing capabilities and PoE+ power delivery makes it an ideal platform for supporting comprehensive unified communications deployments that require sophisticated network intelligence and reliable power for connected devices. The switch’s ability to implement QoS policies at the routing level ensures that voice and video communications receive appropriate network resources even in complex, multi-segment network environments.

Support for multicast routing enables efficient distribution of multimedia content and communications across multiple network segments while providing PoE power to endpoints such as IP phones, video conferencing systems, and collaboration devices. This capability proves particularly valuable for organizations that use advanced communication systems, digital signage, or training platforms that require distribution of content to PoE-powered endpoints located in different network segments.

The switch’s support for Voice VLAN and advanced traffic prioritization features works in conjunction with PoE+ power delivery to ensure that communication devices receive both appropriate network priority and reliable power supply. This integration proves critical for organizations that depend on IP-based communications for business operations, customer service, or internal collaboration activities.

Advanced call routing capabilities enable the switch to participate in sophisticated telephony architectures that require intelligent call handling and routing decisions. When combined with Grandstream’s UCM series IP PBX systems or SoftwareUCM solutions, the GWN7812P can implement advanced communication policies while providing power and connectivity to all connected communication devices.

Specifications:

• Physical Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, 4 x 10G SFP+ ports, 1 x Console port
• PoE+ Power: IEEE 802.3at/af compliant, up to 30W per port, 240W total power budget
• Switching Capacity: 48 Gbps
• Forwarding Rate: 35.7 Mpps
• MAC Address Table: 16K entries
• Routing Table: 2K IPv4 routes, 1K IPv6 routes
• VLAN Support: 4K VLANs, IEEE 802.1Q VLAN tagging, Port-based VLAN, Voice VLAN
• Routing Protocols: Static routing, RIP v1/v2, inter-VLAN routing, VRRP
• Spanning Tree: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
• Link Aggregation: IEEE 802.3ad LACP, up to 8 groups
• QoS: 8 priority queues, DSCP, IEEE 802.1p, rate limiting, traffic shaping
• Security Features: Port security, IEEE 802.1X authentication, ACL (L2/L3), DHCP snooping, ARP inspection, DoS protection
• Management: Web GUI, CLI, SNMP v1/v2c/v3, GDMS cloud management, SSH, Telnet
• Power Consumption: Maximum 320W (including PoE budget)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Dimensions: 440 x 285 x 44 mm
• Mounting: Desktop, wall-mount, 19-inch rack-mount
• Warranty: 2 years manufacturer warranty
