Description

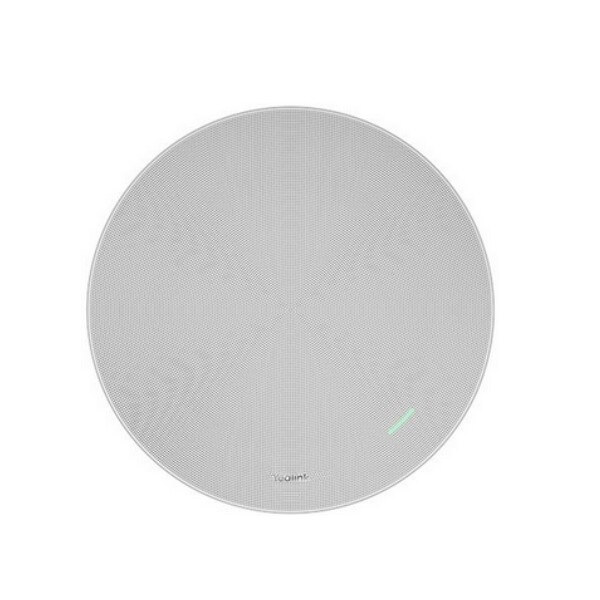

Yealink SkySound CS10 Dubai

The Yealink SkySound CS10 Dubai represents a discreet 2-way coaxial network speaker celebrated for its exceptional audio performance, especially in video conferencing environments. Designed for modern meeting spaces, it effortlessly blends high-quality sound with a stylish, minimalist design, ideal for contemporary conference rooms. Built with versatility and ease of use in mind, this Power over Ethernet (PoE) enabled speaker offers flexible deployment options with various additional components, simplifying installation across different ceiling types. Its refined design positions the CS10 as more than just a speaker; it becomes a vital enhancement to your meeting space, enhancing both auditory and visual elements. Going beyond its practical functionality, the CS10 epitomizes sophistication and elegance in technology, making it the ultimate audio solution for professional needs.

Yealink SkySound CS10 Key Features

Innovative Coaxial Structure: This speaker features a 2-way coaxial setup comprising a robust 5.7-inch LF Woofer and a distinct 1.1-inch HF Tweeter, ensuring accurate audio delivery.

High Performance Acoustics: This speaker showcases outstanding acoustic characteristics, with an 88-decibel sensitivity at 1 watt per meter and a maximum sound pressure level of 99 decibels at 20 watts per meter, ensuring precise and robust audio delivery.

PoE Enabled Active Speaker: The SkySound CS10 seamlessly integrates advanced active speaker capabilities with a built-in DAC and PoE technology. This innovative combination enables swift digital signal processing directly from the network, facilitating effortless setup with minimal latency, ideal for a diverse range of professional environments

Dante Ready for Advanced Audio Networking: The SkySound CS10 is available in two options: one equipped with Dante compatibility and the other as a standard version. It effortlessly integrates into sophisticated audio networks, providing versatility for complex configurations and full compatibility with Dante audio systems. Consider choosing the Dante-enabled version to take advantage of its advanced audio networking features.

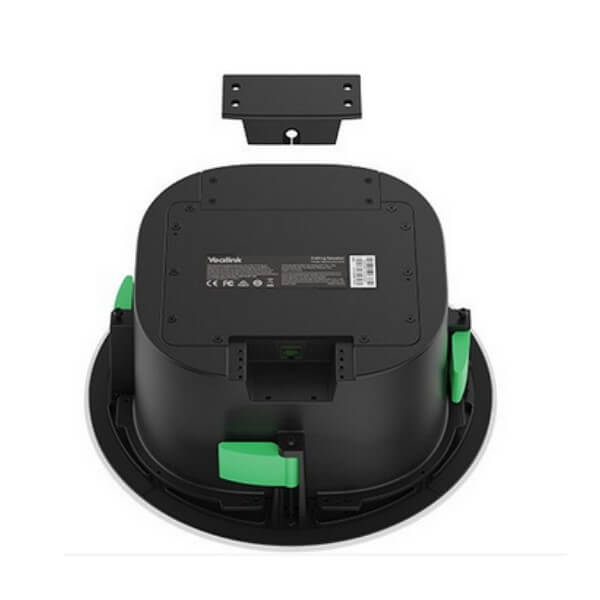

Versatile Deployment: Offers a variety of indoor installation options compatible with various ceiling types and grid systems, ensuring smooth integration with any interior design scheme.

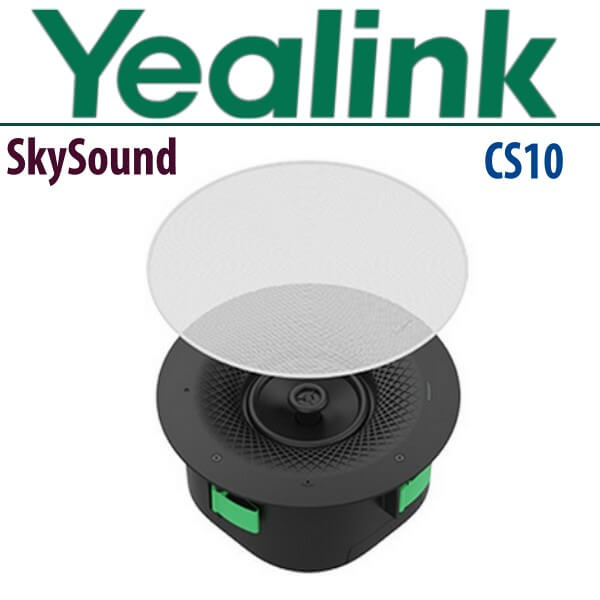

Sophisticated Design: This speaker is equipped with a detachable magnetic grille, which can be customized with paint and is offered in black or white options. The grille complements the speaker’s modern and understated design, measuring 120mm and ensuring compatibility with various contemporary interiors.

Yealink SkySound CS10 Specifications

Package Content

SkySound CS10 Speaker
White Mesh Cover (Black Optional)
Quick Star t Guide
Assembly Fixing Bracket
Dust Cover
Deployment Instruction Template
Bracing Bridge (Optional)
Dust Cover Screw*6 (M3*4CMHOZN3)

Audio Specifications

Frequency Response (6dB): 10020 kHz
Maximum SPL:
- Continuous: 99dB @20W 1m
- Sensitivity: 88dB@1m 1W

Speaker Specification

LF: 5.7inch (145 mm) woofer
HF: 1.1inch (28 mm) tweeter
Nominal Impedance: 8Ω
Nominal Coverage Angle: 120

Product Specifications

Size:
- ф294*H125.8 mm (with cover mesh）
- ф2*H125 mm (without cover mesh)
Weight:
- 2808 g (without cover mesh) ；
- 207 g (Cover mesh)
Product Color: white/black
Cover Mesh Color: white/black
Product Materials:
- Cover Mesh: PC/ABS Welded SPCC
- Main Body Shell: PA (Polyamide) with 15% GF
- Bottom Shell: aluminum alloy
- Cover Plate: PC/ABS and SGCC
- Plenum Rated UL 2043 (suitable for air handling spaces)
